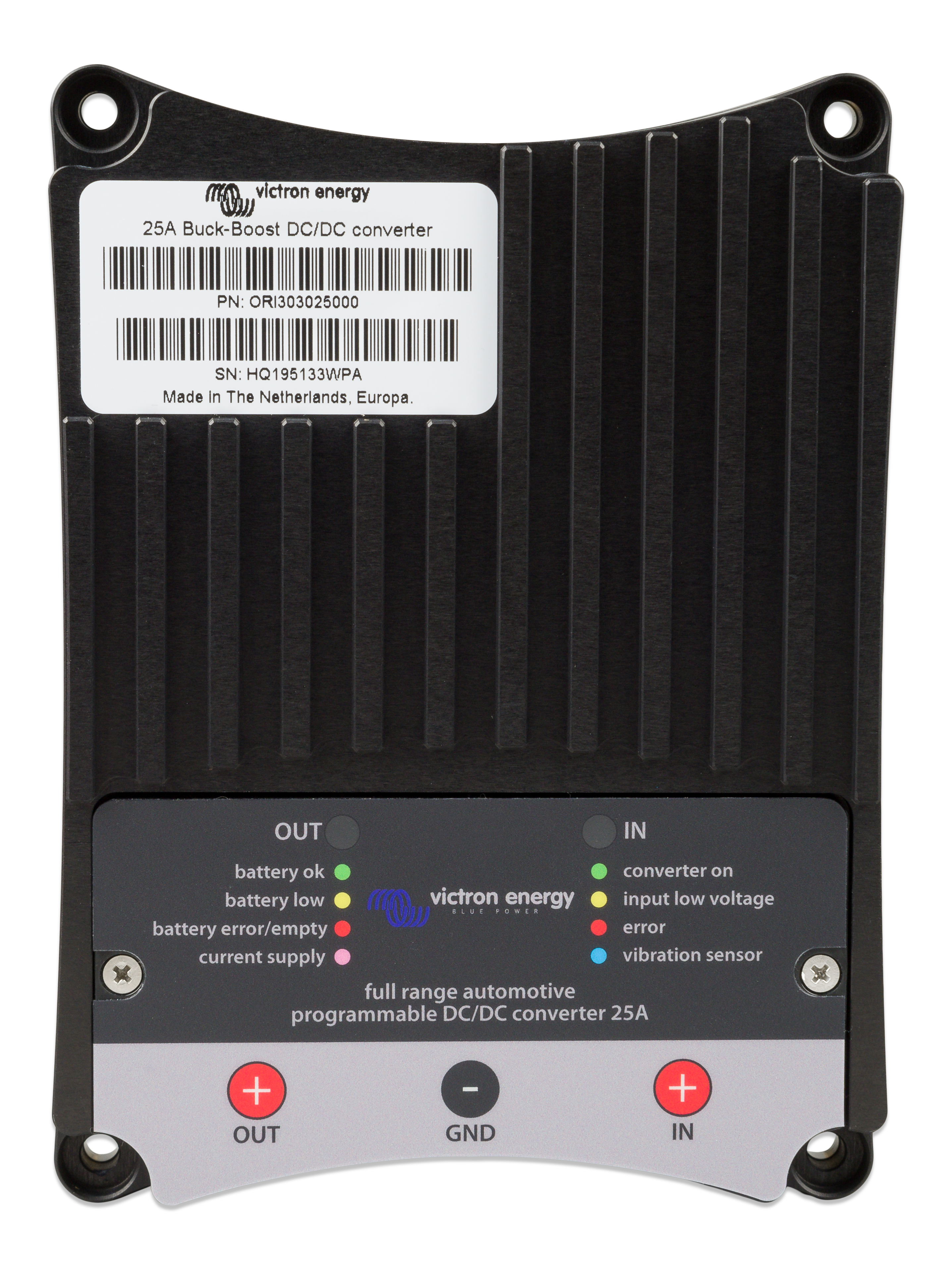

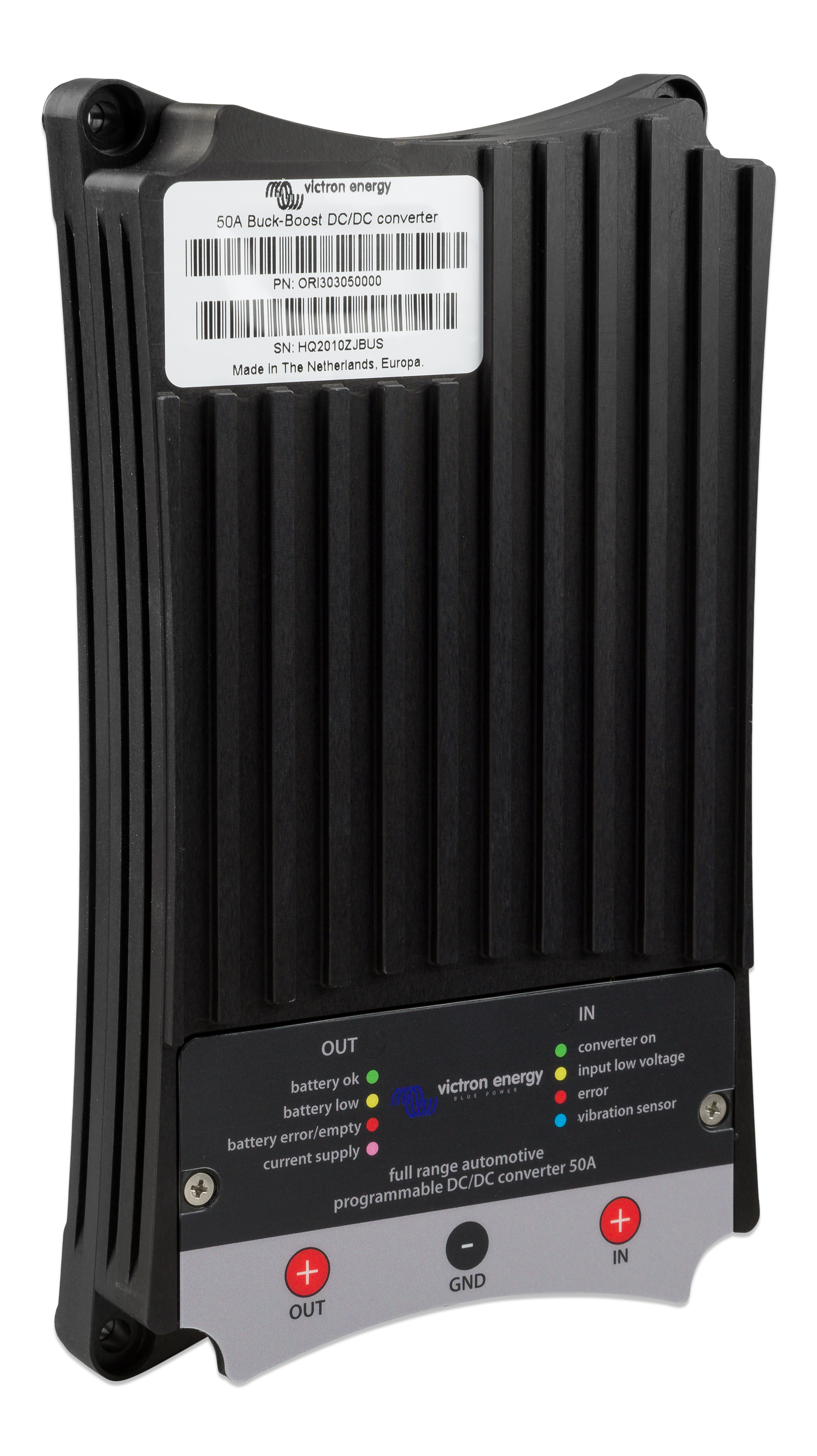

Buck-Boost DC-DC Converter 25A / 50A / 100A

SKU principal: ORI303025000

DC-DC Converter for charging a 12/24V service battery in vehicles with an intelligent dynamo. <p>The Buck-Boost DC-DC Converter is a DC-DC converter for charging a 12/24V service battery in vehicles with an intelligent dynamo. Since,
when the engine is running,
these dynamos (powered by the on-board electronics of Euro 5 and 6 engines) do not always emit the correct charging current,
a DC-DC converter is essential for charging the service battery properly.</p>

Códigos SKU

ORI303025000 ORI303050000 ORI303100000

DATOS DEL FABRICANTE

Especificaciones técnicas

Input Voltage Range: [ 10, 30 ] V
Under Voltage Shutdown: 10 V
Output Voltage Range: [ 10, 30 ] V
Maximum Output Current12 V: 100 A
Maximum Output Current24 V: 50 A
Standby Current Consumption: 7 mA
Programable: 1
Remote On Off Terminal: 1
Temperature Sensor: Optional (ASS000200100 - CAN-bus Temp. Sensor)
Operating Temp Range: [ -25, 60 ] °C
Full Rating Temperature: 60 °C
Dc Connection Terminal Type: M8 bolts
Relay Terminal Connection1: Screw terminal two pole
Material: Aluminium
Weight: 4.1 kg
Height: 288 mm
Width: 162 mm
Depth: 95 mm
Input Voltage Range: [ 10, 30 ] V
Under Voltage Shutdown: 10 V
Output Voltage Range: [ 10, 30 ] V
Maximum Output Current12 V: 25 A
Maximum Output Current24 V: 15 A
Standby Current Consumption: 7 mA
Programable: 1
Remote On Off Terminal: 1
Operating Temp Range: [ -25, 60 ] °C
Full Rating Temperature: 60 °C
Dc Connection Terminal Type: M8 bolts
Remote On Off Terminal Connection: Screw terminal two pole
Material: Aluminium
Weight: 0.6 kg
Height: 165 mm
Width: 120 mm
Depth: 30 mm
Input Voltage Range: [ 10, 30 ] V
Under Voltage Shutdown: 10 V
Output Voltage Range: [ 10, 30 ] V
Maximum Output Current12 V: 50 A
Maximum Output Current24 V: 25 A
Standby Current Consumption: 7 mA
Programable: 1
Remote On Off Terminal: 1
Temperature Sensor: Optional (ASS000200100 - CAN-bus Temp. Sensor)
Operating Temp Range: [ -25, 60 ] °C
Full Rating Temperature: 60 °C
Dc Connection Terminal Type: M8 bolts
Relay Terminal Connection1: Screw terminal two pole
Material: Aluminium
Weight: 1.4 kg
Height: 213 mm
Width: 120 mm
Depth: 30 mm
